Vision Sperm
Application Module
Analysis of sperm parameters according to WHO requirements.
Telemedicine and remote consultations with collegues.
Motility/Concentration
Morphology

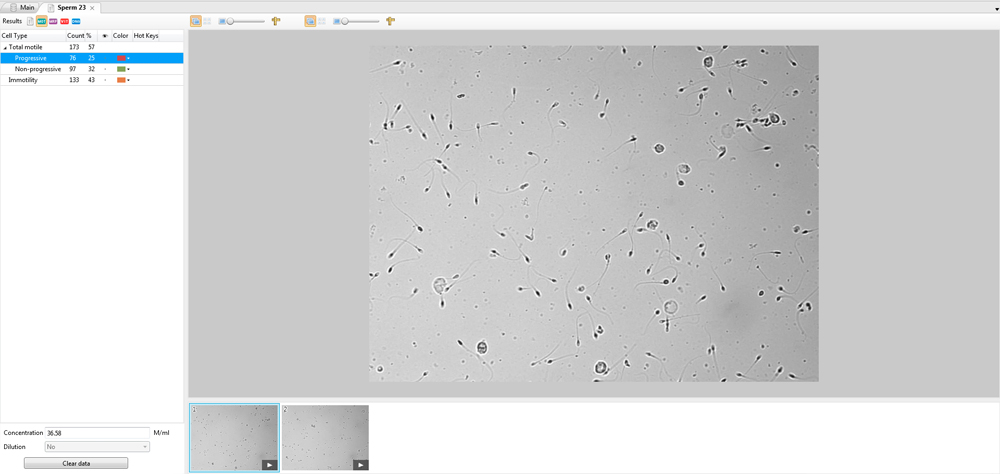

Motility analysis and sperm concentration assessment. Motility is determined by computing the sperm cells moving path in the field of view during a set time period. Concentration is determined by calculating the total number of spermatozoa taking into account the specimen’s thickness and dilution.

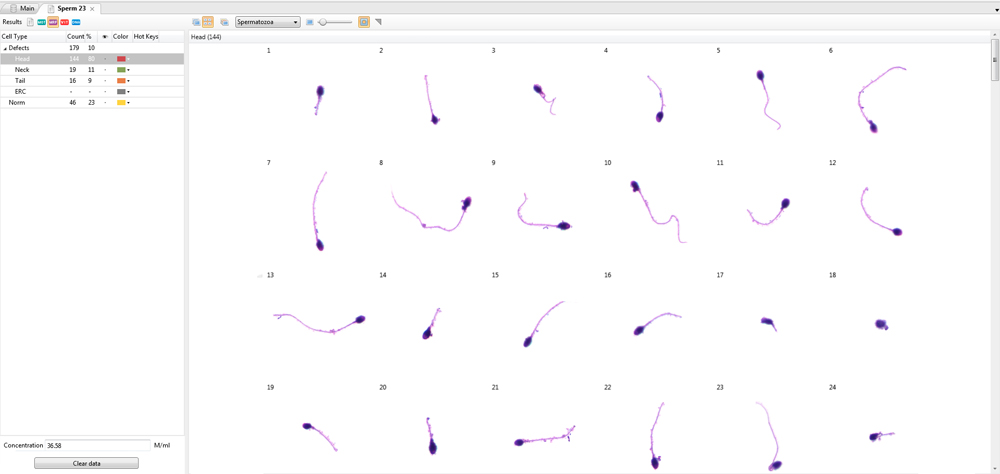

Morphology analysis of sperm, identification and pre-classification. Sperm cells are classified as “normal” and “abnormal”.
Types of defects:
— Head;
— Neck;
— Tail;
— ERC.
Vitality
DNA fragmentation

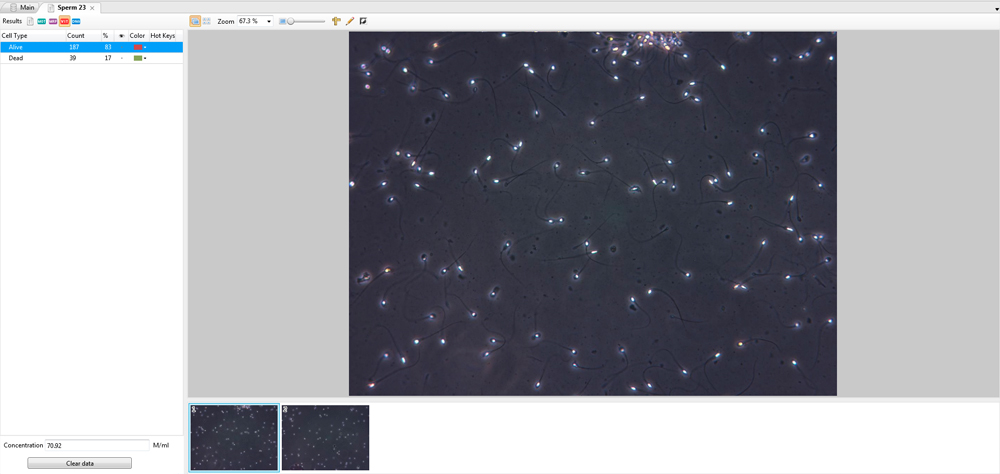

Pre-classification of sperm vitality, calculation of live-dead ratio.

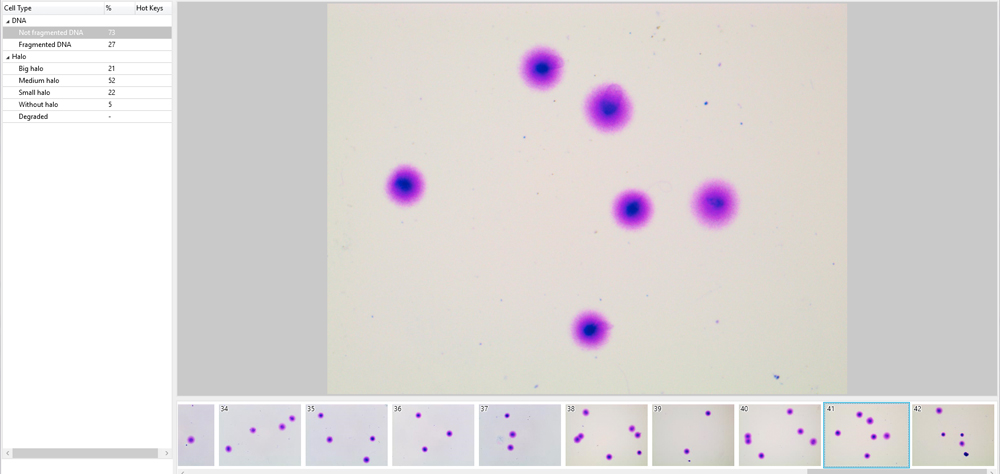

Pre-classification by DNA fragmentation degree. Calculation of the ratio of fragmented spermatozoa to relatively healthy ones.
Leucocytes
Acrosome reaction
Counting leucocytes in sperm

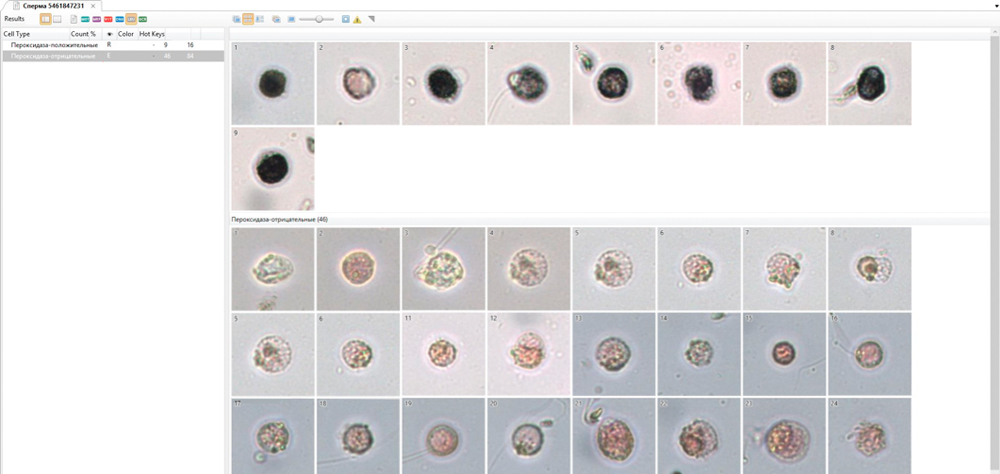

Acrosome reaction test. Only for systems with one slide.
Artificial intelligence
Artificial intelligence (AI) cumulates algorithms and technologies that allow computers to learn and solve intellectual tasks provided by humans. AI speeds up processing and interpretation of data, and allows to efficiently perform the most comprehensive tasks, including medical image analysis.
Clinical applications
The latest developments of artificial intelligence provide a solution for the tasks connected with automation in digital microscopy. Our technologies speed up the diagnostic process, reduce analysis time and lower subjectivity of the results received. They improve the efficiency of laboratory routine operation, bringing microscopy analyses in line with state-of-the-art standards.
Specifications
|
|
|
Application module |
Application module |
Application module |
Manual scanning |
Automatic scanning |
Automatic scanning |
1 slide |
1 or 4 slides |
8 slides |
Manual slide handling |
Manual slide handling |
2 cassettes with slides |
Manual oil dispensing |
Manual oil dispensing |
Automatic oil dispenser (optional) |
Manual slide identification |
Manual slide identification |
Built-in barcode reader (optional) |
Microscope |
Scanning Microscope |
Scanning Microscope |
Personal computer |
Personal computer |
Personal computer |
Monitor |
Monitor |
Monitor |
Optical system: |
Optical system: |
Optical system: |
Bright fields, phase contrast, fluorescence* |
Bright fields, phase contrast, fluorescence* |
Bright fields, phase contrast |
Köehler, LED |
Köehler, LED |
Köehler, LED |
Bidirectional LIS, LIS2-A2 (ASTM), HL7, Ethernet |
Bidirectional LIS, LIS2-A2 (ASTM), HL7, Ethernet |
Bidirectional LIS, LIS2-A2 (ASTM), HL7, Ethernet |
Art. N.: 64030.04.006
|
Art. N.: 71150.04.006 (1 slide)
|
Art. N.: 72852.04 (8 slides) |
*Acrosome reaction
For research use only.
