Vision Gram
Clinical Application Module

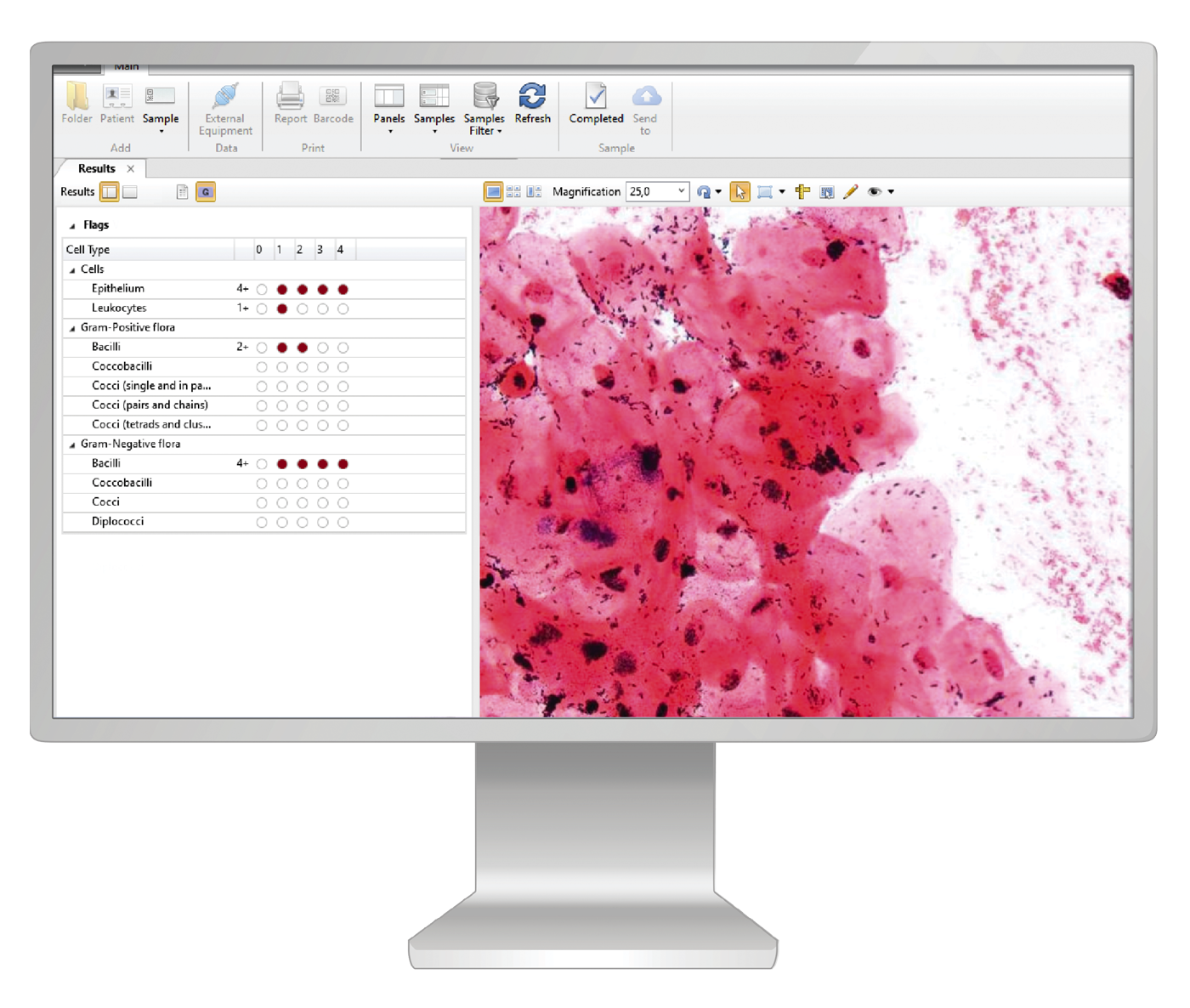

Automatic analysis of Gram smears
Automatic scanning and creation of digital slide
Automatic morphology assessment, count and pre-classification of gram-positive and gram-negative bacteria:
— Lactobacillus morphotypes
— Gram-negative and gram-positive rods
— Gram-negative and gram-positive cocci, located extra- and intracellularly, paired, chains, clusters
— Gardnerella morphotypes
— Anaerobic bacterial morphotypes, including: Peptostreptococcus, Bacteroides, Fusobacteriales, Prevotella, Mobiluncus spp.
Additional Module

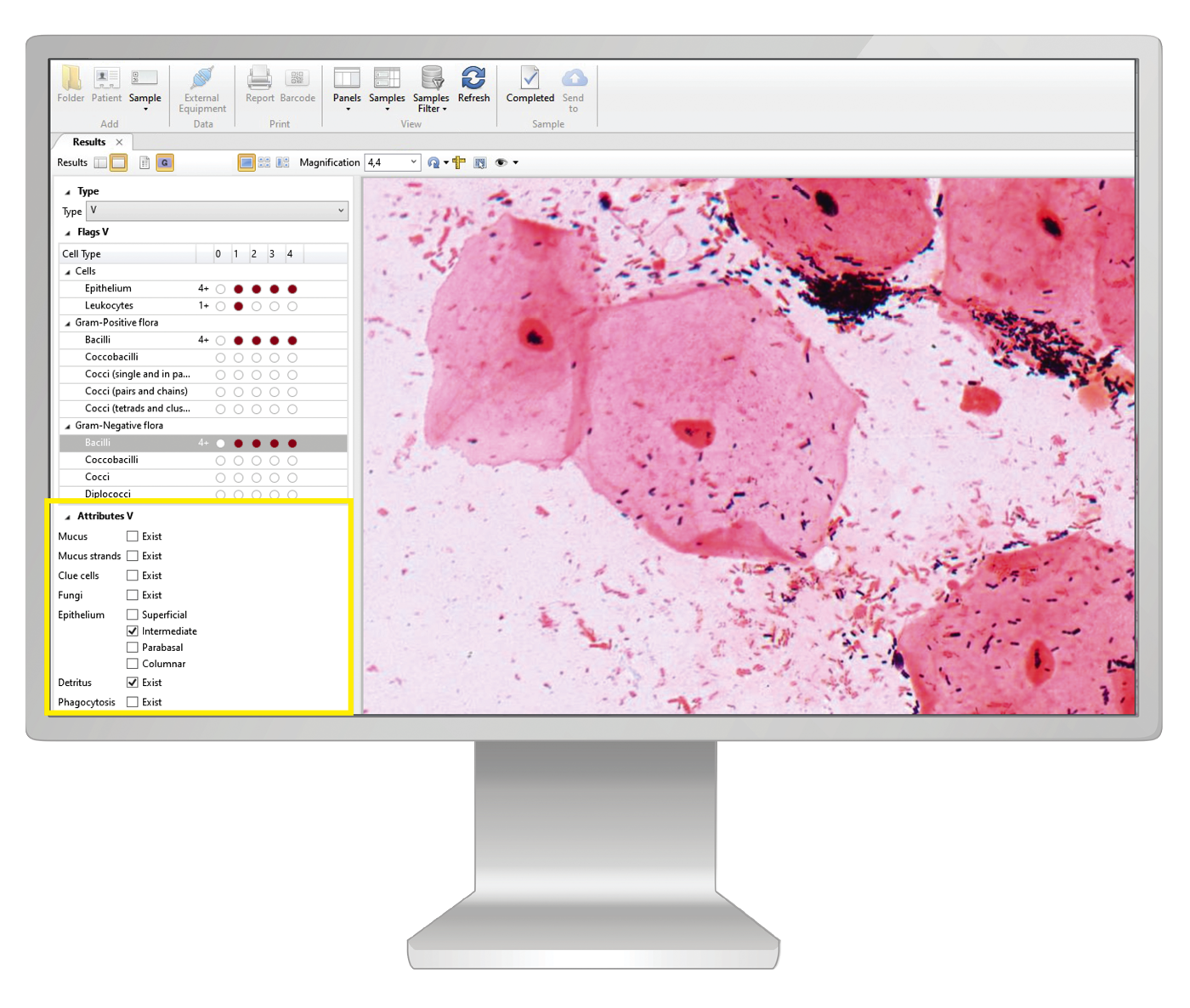

Vision Extended Gram
Automatic identification:
— Epithelial cells (superficial, intermediate, parabasal, cylindrical epithelial)
— Leukocytes
— Clue cells
— Mucus and cell debris
— Trichomonas vaginalis
— Fungi.
Scanning DS 2.5x, smear and location area detector
Working with one location area
Operation mode: Gram

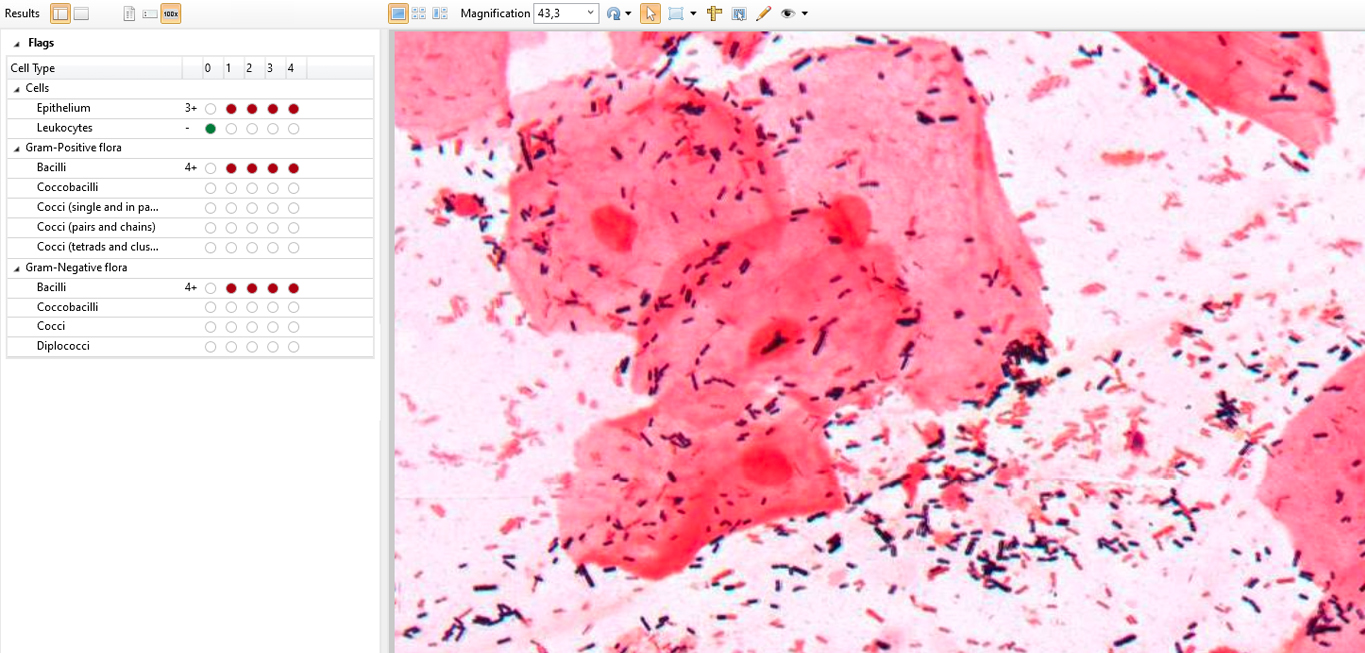

Digital slide, Gram smear with 2.5x magnification.

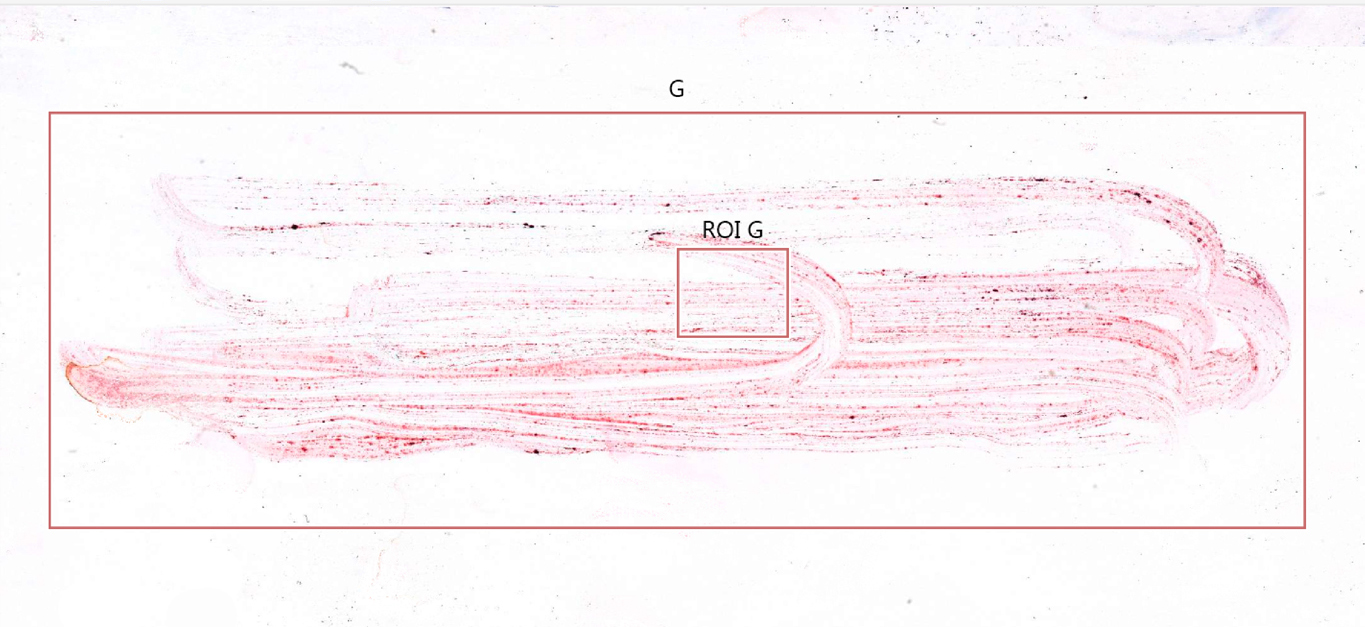

Automatic detection of Regions of Interest (ROI), Gram smear

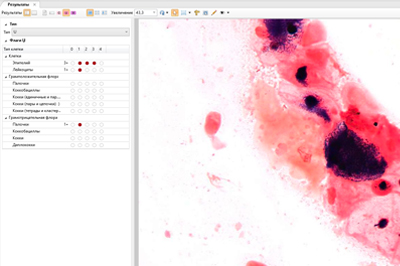

Automatic scanning and analysis of Gram location
Automatic detection of three locations
Operation mode with three locations:
Cervical, Urethral, Vaginal
Digital slide, Gram smear with 2.5x magnification.

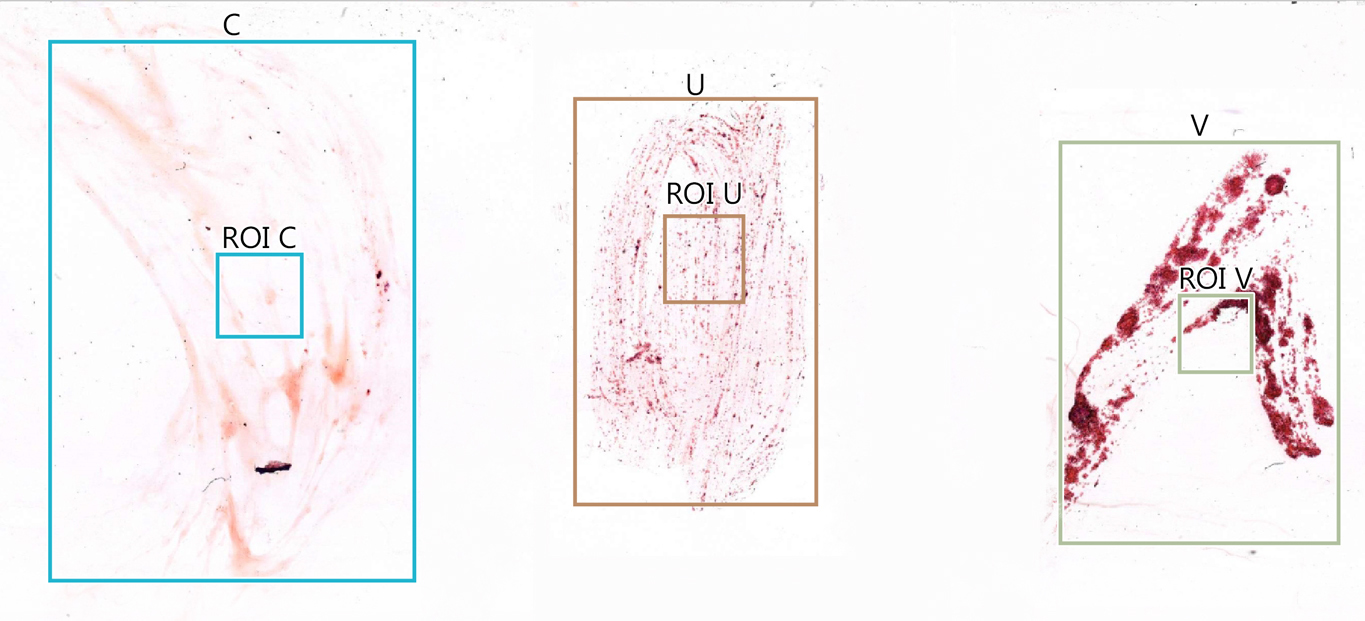

Automatic selection of locations and Regions of Interest (ROI) for locations: Cervical, Vaginal, Urethral

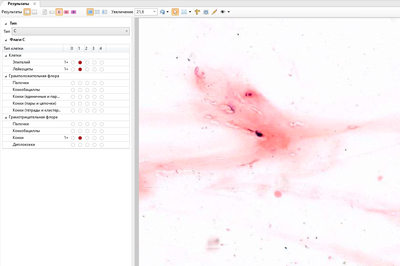

Automatic scanning and analysis of Cervical Location
Automatic scanning and analysis of Urethral Location

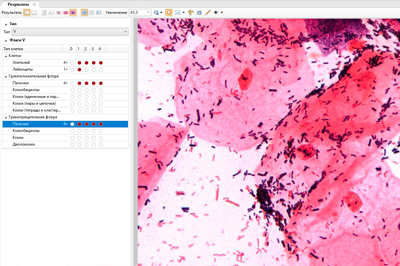

Automatic scanning and analysis of Vaginal Location
Artificial intelligence
Artificial intelligence (AI) cumulates algorithms and technologies that allow computers to learn and solve intellectual tasks provided by humans. AI speeds up processing and interpretation of data, and allows to efficiently perform the most comprehensive tasks, including medical image analysis.
Administrative Modules

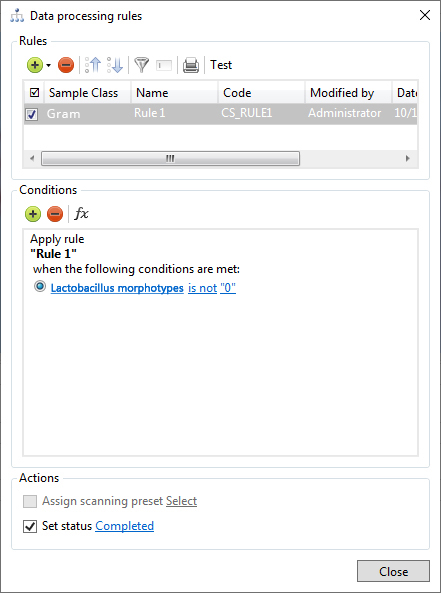

Analysis procedure automation, data processing rules.
Сonsulting and Education Module
Vision Suite

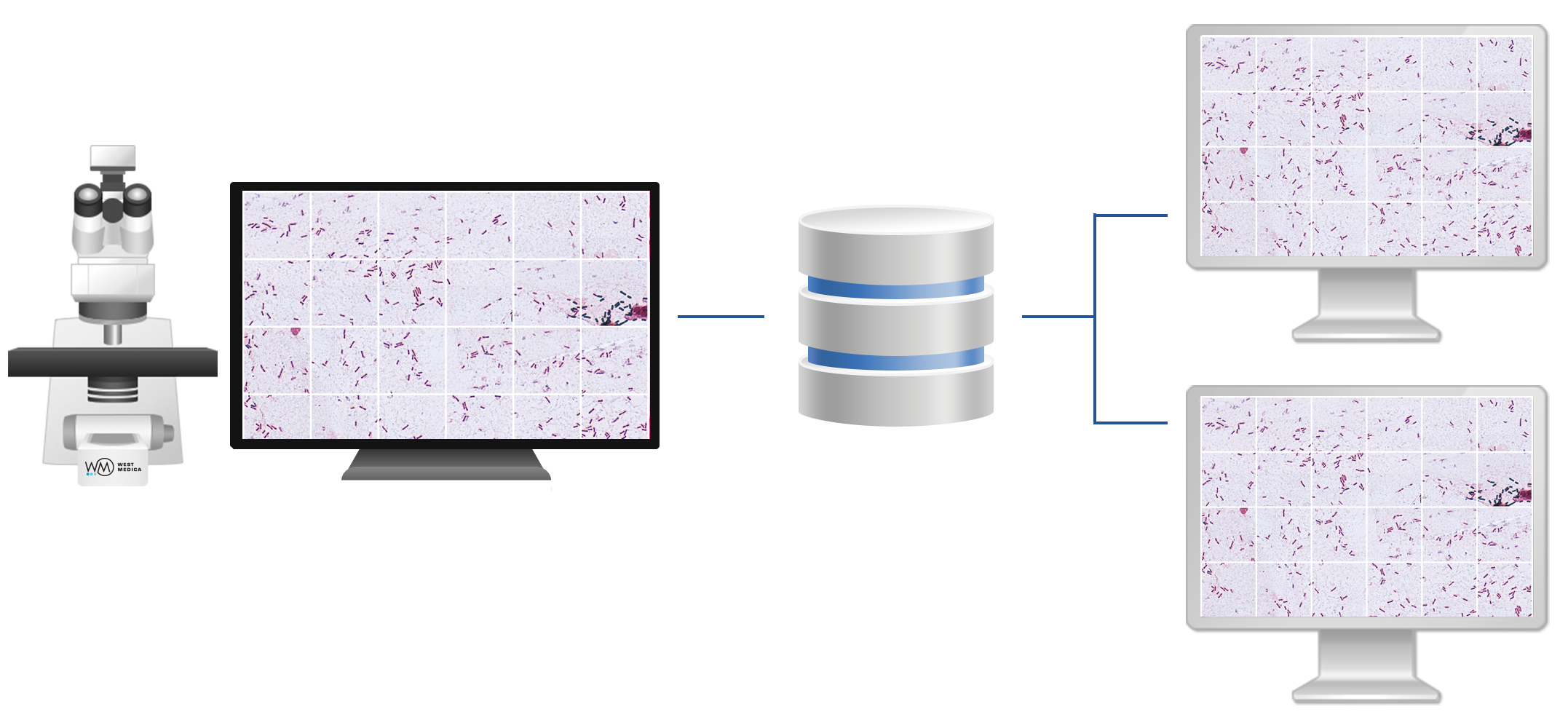

Cloud/server for telemedicine and remote consultations with colleagues.
Clinical applications
The latest developments of artificial intelligence provide a solution for the tasks connected with automation in digital microscopy. Our technologies speed up the diagnostic process, reduce analysis time and lower subjectivity of the results received. They improve the efficiency of laboratory routine operation, bringing microscopy analyses in line with state-of-the-art standards.
Specifications
|
|
|
Application module |
Application module |
Application module |
Additional modules |
Additional modules |
Additional modules |
Digital slide 100x |
Digital slide 60x/100x |
Digital slide 63x |
Operation mode: Gram (1 location) |
Operation mode: Gram (1 location) |
Operation mode: Gram (1 location) |
— |
— |
Operation mode CUV (3 locations) |
— |
— |
DS 2,5x, smear detector |
Working modes: |
Working modes: |
Working modes: |
Automatic scanning |
Automatic scanning |
Automatic scanning |
1 or 4 slides |
8 slides |
Up to 200 slides |
Manual slide handling |
2 cassettes with slides |
Automatic slide handling |
Microscope for scanning |
Microscope for scanning |
Microscope for scanning |
Personal computer |
Personal computer |
Personal computer |
Monitor |
Monitor |
Monitor |
— |
— |
Touch-screen monitor for control |
— |
Built-in barcode reader (optional) |
Built-in barcode reader |
— |
Automatic oil dispenser (optional) |
Automatic oil dispenser |
Optical system: |
Optical system: |
Optical system: |
Bright field |
Bright field |
Bright field |
Köhler illumination, LED |
Köhler illumination, LED |
Köhler illumination, LED |
Bidirectional LIS, LIS2-A2 (ASTM), HL7, Ethernet |
Bidirectional LIS, LIS2-A2 (ASTM), HL7, Ethernet |
Bidirectional LIS, LIS2-A2 (ASTM), HL7, Ethernet |
Art. N.: 71150.05 (1 slide) |
Art. N.: 72852.05 (8 slides) |
Art. N.: 73031.05 (200 slides) |
Please check the intended use and the registration in your local regulation. Depending on the regulations of the respective region, some products may be used for research purpose only. Pre-classification has to be validated by the specialist reviewing the galleries of cells. We reserve the right to change specification without notice.
