Vision Bone Marrow
Clinical Application Module
Automatic scanning, pre-classification and counting of bone marrow cells.
— Blasts
— Basophils
— Eosinophils
— Promyelocytes
— Myelocytes
— Metamyelocytes
— Band neutrophils
— Segmented neutrophils
— Lymphocytes
— Erythroblasts

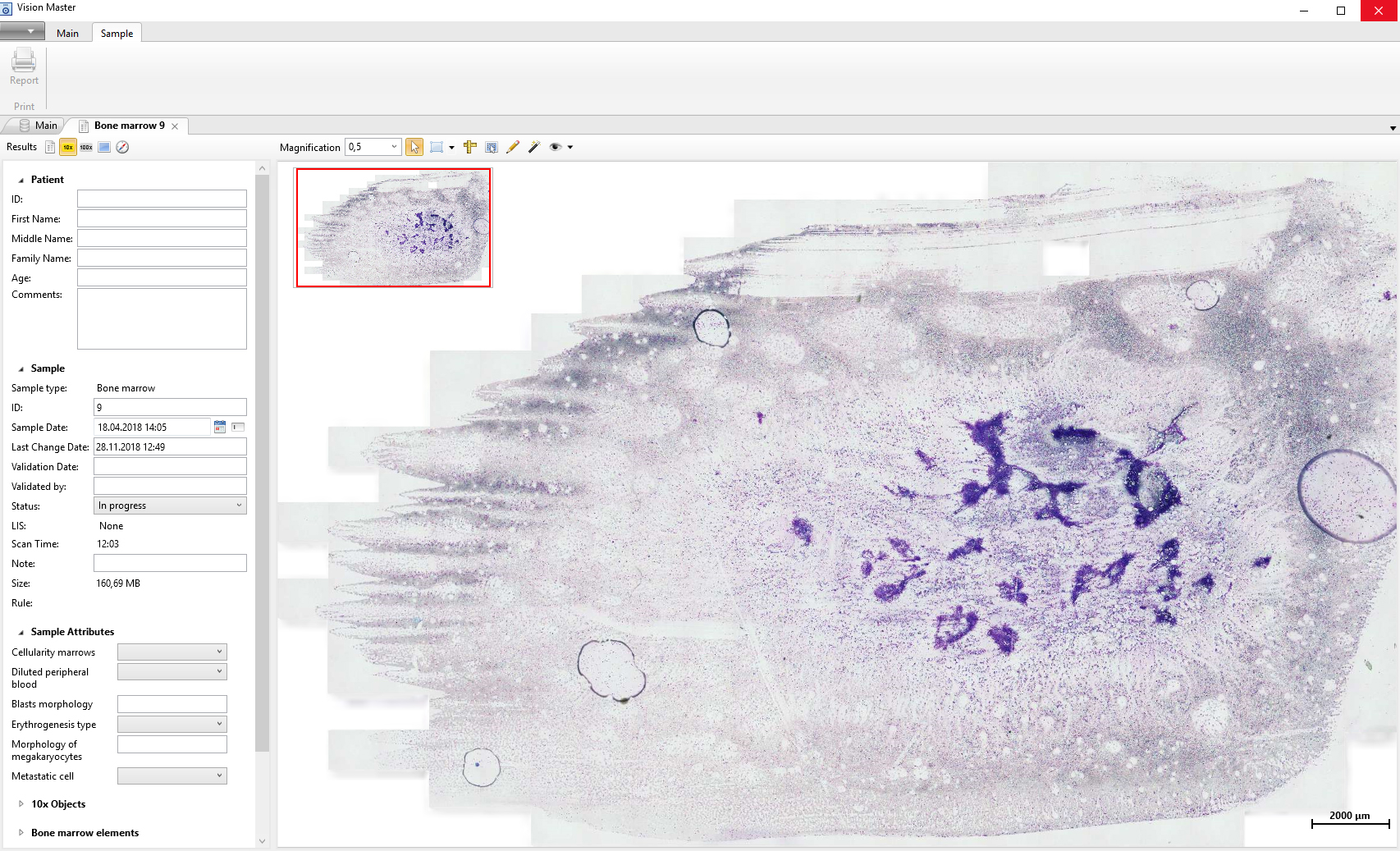

Digital slide of bone marrow.

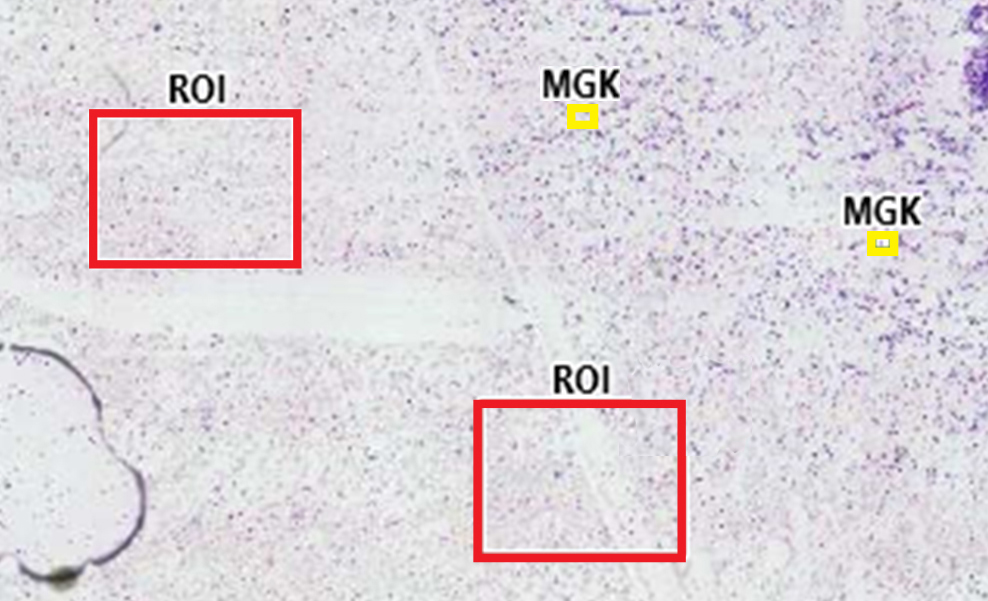

Automatic selection of regions of interest (ROI) and identification of megakaryocytes (MGK).

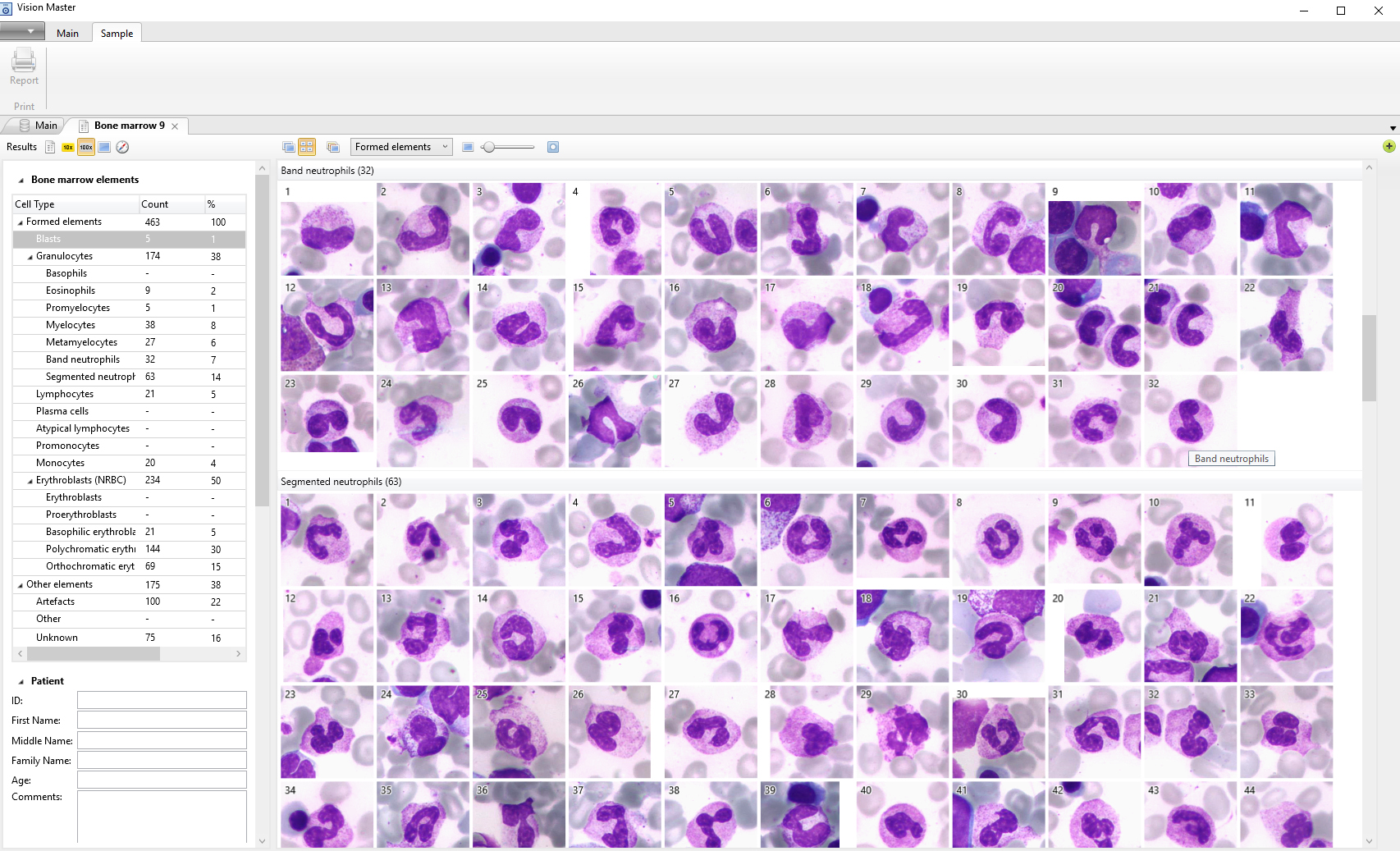

Bone marrows cells gallery.

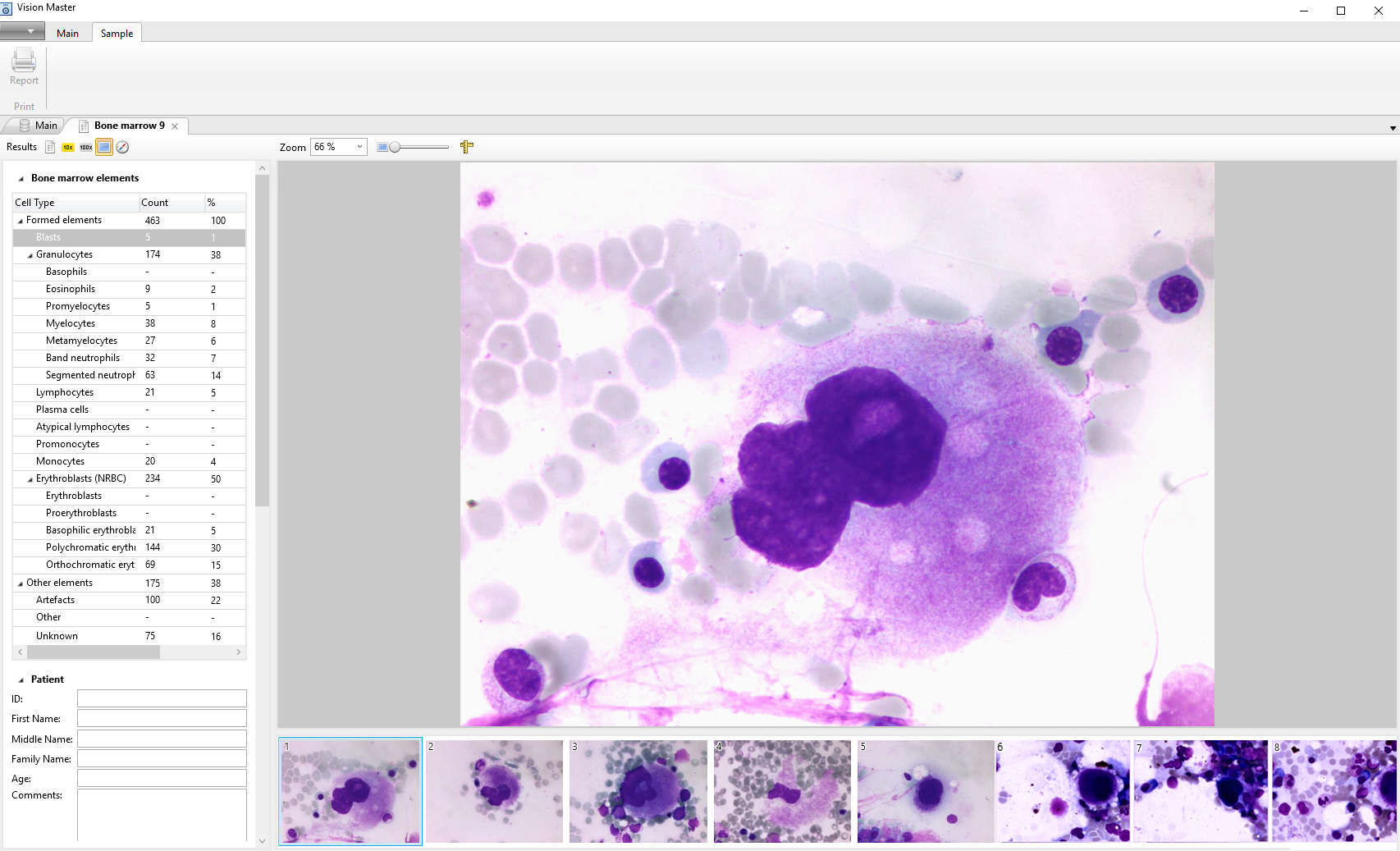

Megakaryocytes gallery.
Automation through Vision Bone Marrow improves the quality and increases the speed of analysis. Vision Bone Marrow allows you to save time and resources of your laboratory. A specialist only validates the analysis results.
Artificial intelligence
Artificial intelligence (AI) cumulates algorithms and technologies that allow computers to learn and solve intellectual tasks provided by humans. AI speeds up processing and interpretation of data, and allows to efficiently perform the most comprehensive tasks, including medical image analysis.
Administrative Modules

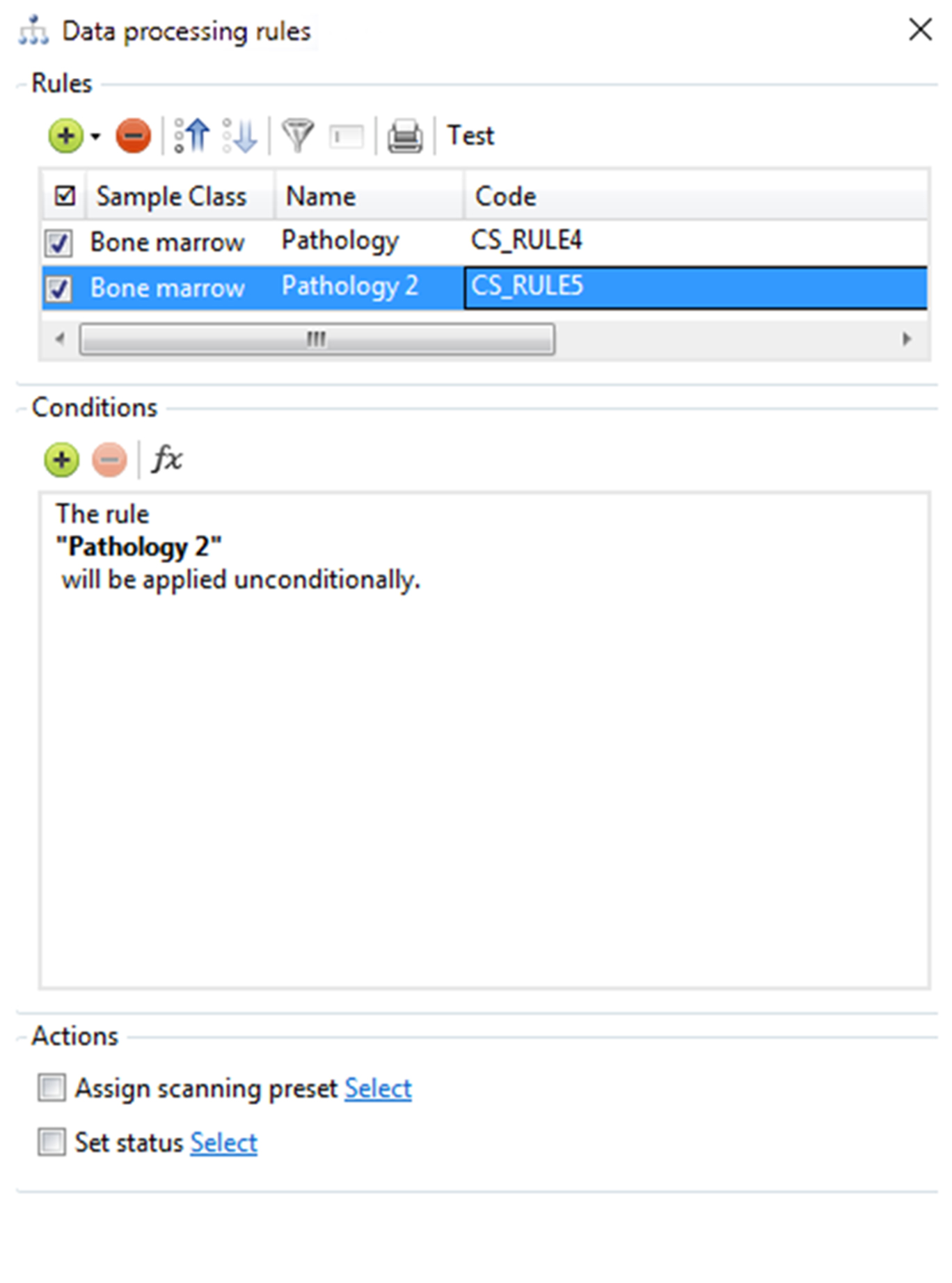

Analysis procedure automation, data processing rules.

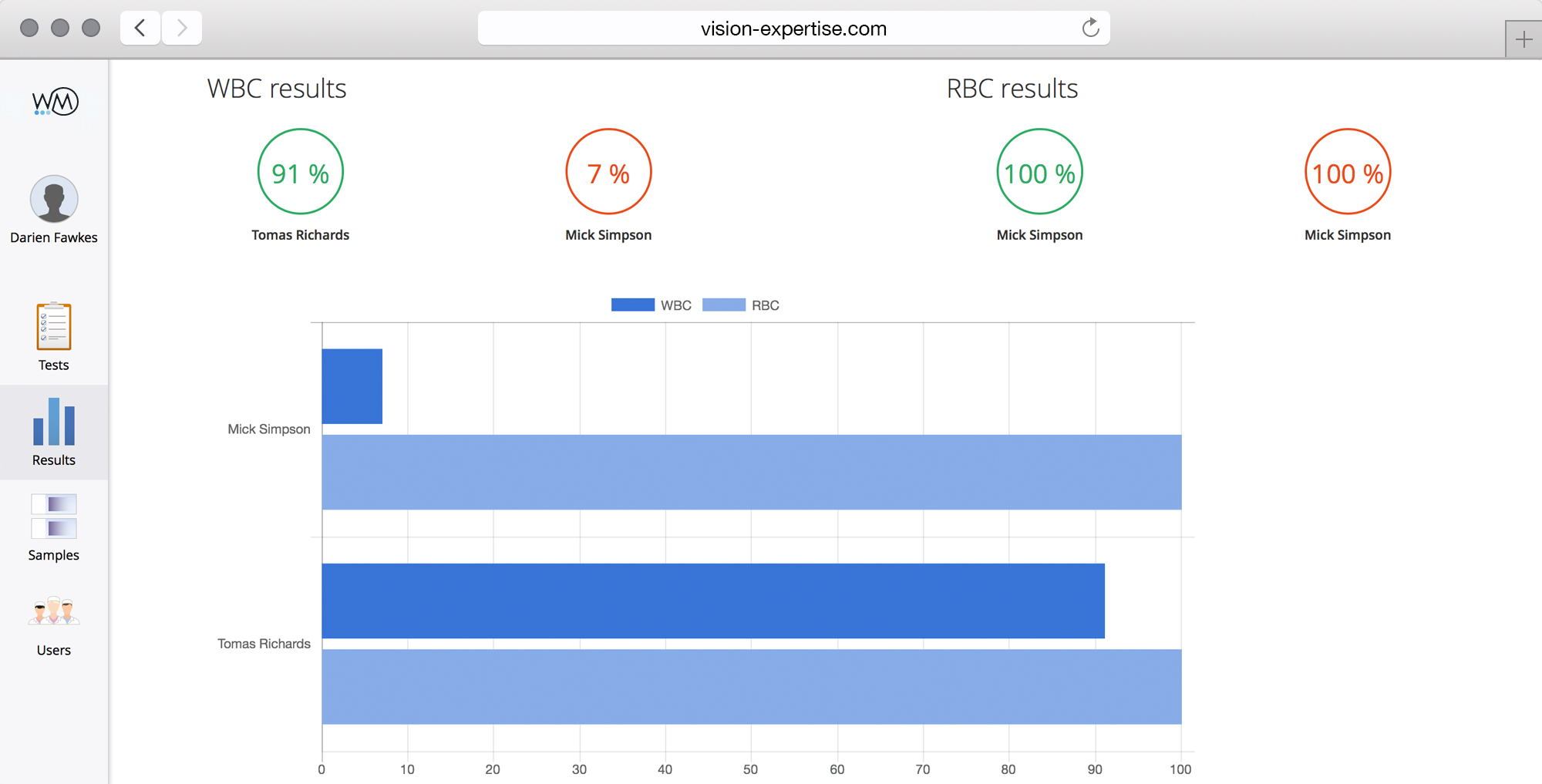

Сonsulting and Education Modules

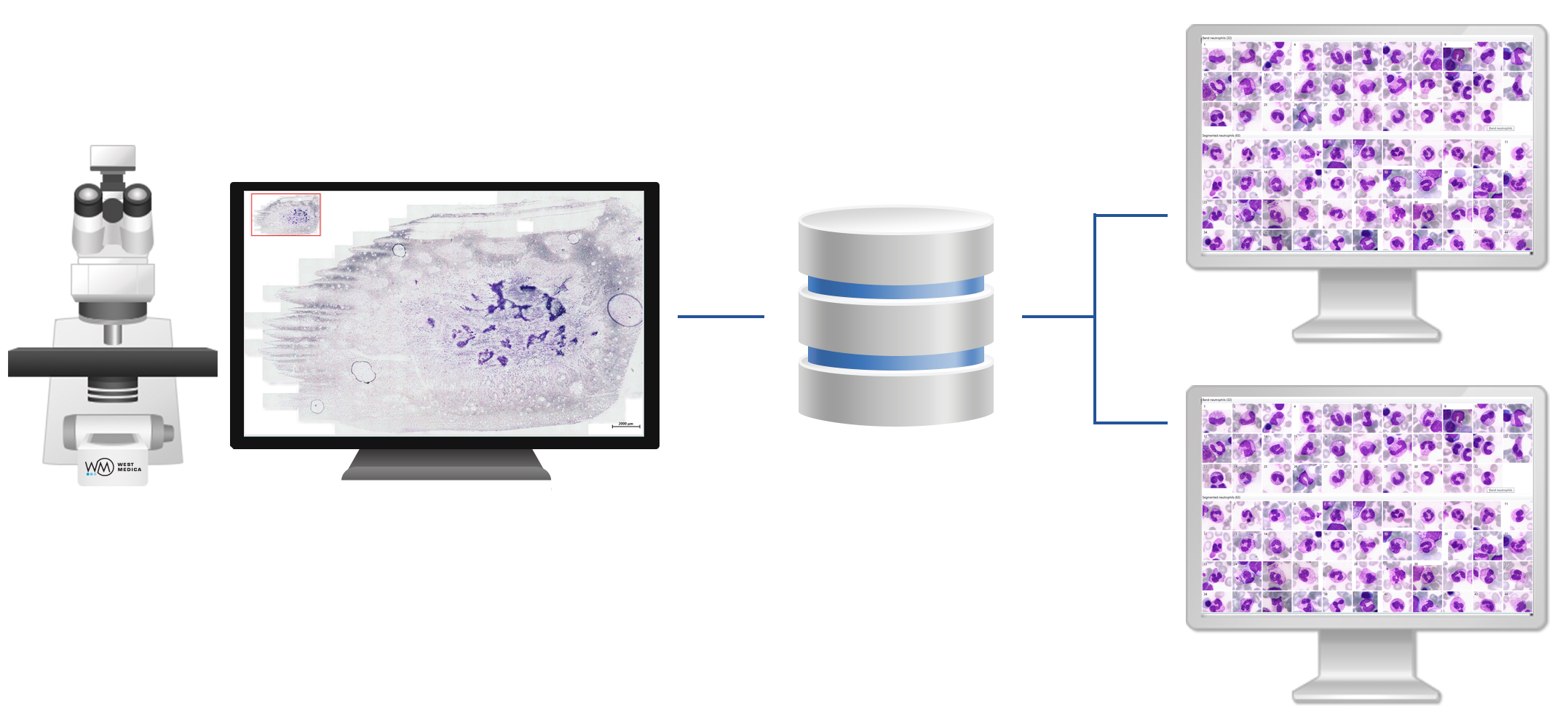

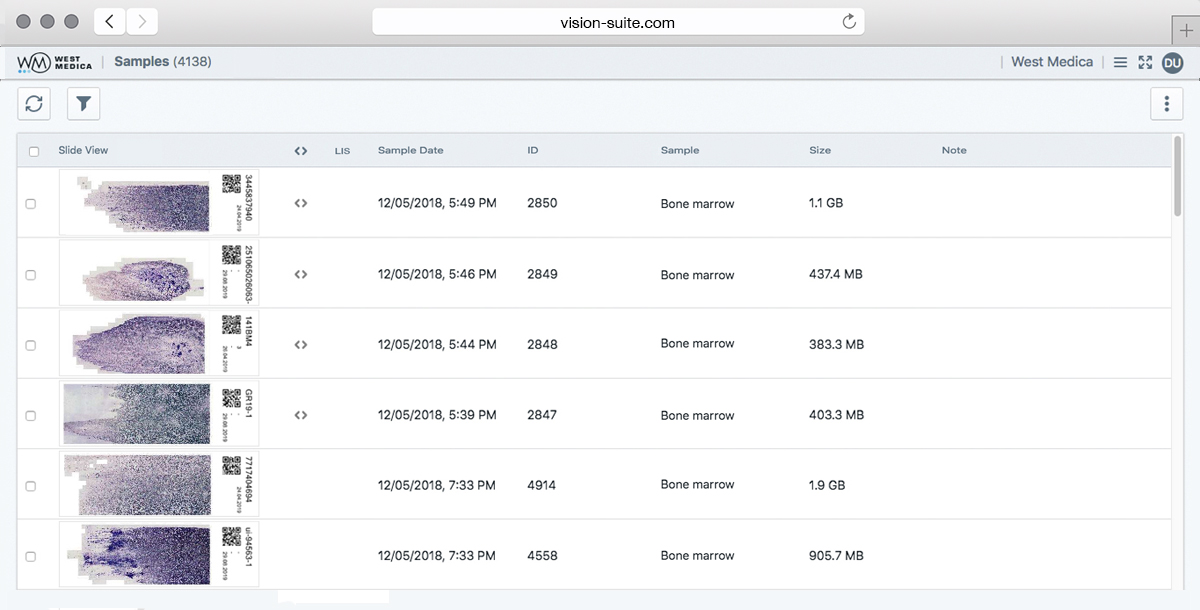

Cloud/server for telemedicine and remote consultations with colleagues.
Clinical applications
The latest developments of artificial intelligence provide a solution for the tasks connected with automation in digital microscopy. Our technologies speed up the diagnostic process, reduce analysis time and lower subjectivity of the results received. They improve the efficiency of laboratory routine operation, bringing microscopy analyses in line with state-of-the-art standards.
Specifications
|
|
|
Application module |
Application module |
Application module |
Working modes: |
Working modes: |
Working modes: |
Automatic scanning |
Automatic scanning |
Automatic scanning |
1 or 4 slides |
8 slides |
Up to 200 slides |
Manual slide handling |
2 cassettes with slides |
Automatic slide handling |
Microscope for scanning |
Microscope for scanning |
Microscope for scanning |
Personal computer |
Personal computer |
Personal computer |
Monitor |
Monitor |
Monitor |
— |
— |
Touch-screen monitor for control |
— |
Built-in barcode reader (optional) |
Built-in barcode reader |
— |
Automatic oil dispenser (optional) |
Automatic oil dispenser |
Optical system: |
Optical system: |
Optical system: |
Bright field |
Bright field |
Bright field |
Köhler illumination, LED |
Köhler illumination, LED |
Köhler illumination, LED |
Bidirectional LIS, LIS2-A2 (ASTM), HL7, Ethernet |
Bidirectional LIS, LIS2-A2 (ASTM), HL7, Ethernet |
Bidirectional LIS, LIS2-A2 (ASTM), HL7, Ethernet |
Art. N.: 71150.02 (1 slide) |
Art. N.: 72852.02 (8 slides) |
Art. N.: 73011.02 (200 slides) |
Please check the intended use and the registration in your local regulation. Depending on the regulations of the respective region, some products may be used for research purpose only.
